Analogue Telephone Adapter (ATA) Setup

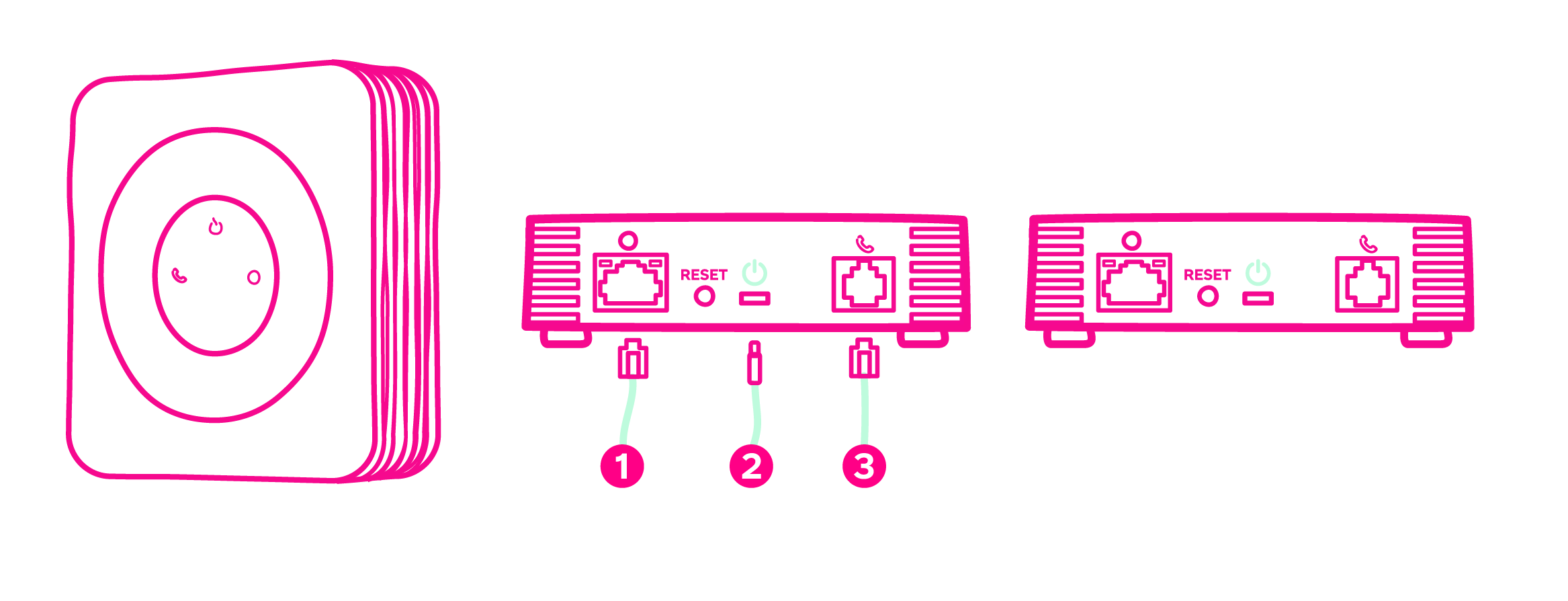

1. WAN

Used to connect your internet router using the Ethernet cable included in the package

2. DC 5V

Used to connect to a power source (such as a wall outlet) using the power adapter in the package.

3. PHONE

Used to connect to your telephone handset using your existing telephone cable.



Complete configuration view
